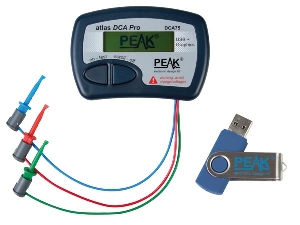

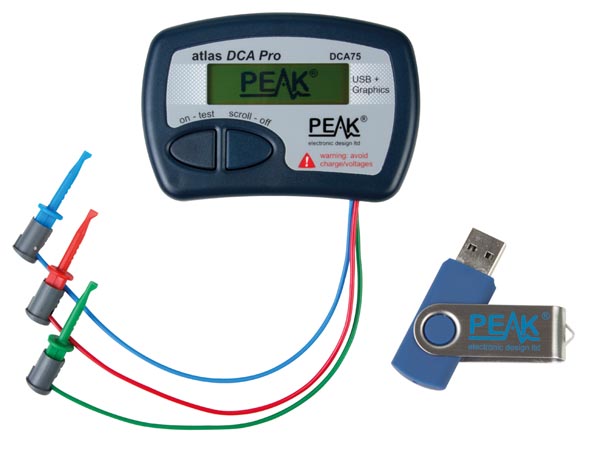

ANALYZÁTOR POLOVODIČOVÝCH SOUČÁSTEK DCA75

Katalog : 5201-2697
Dostupnost : na objednávku
(obvyklá max. doba dodání : 2 týdny)
přidat do mého seznamu oblíbených položek
Jakmile bude položka naskladněna, přijde Vám zpráva.

Zadejte Váš email :

nastavit hlídacího psa = pošle mail jakmile bude položka naskladněna
cena eshop s DPH :6.614,- Kč
cena na prodejně :6.710,- Kč
sleva :1,43 %

množstevní slevy eshop (Kč)
počet
bez DPHvč. DPH
1 ks
5.466,-6.614,-

Recyklační poplatek 0.84 Kč bez DPH.
ADVANCED SEMICONDUCTOR ANALYZER with Curve Tracing

The DCA Pro has an advanced new design that features a graphics display, USB communications, PC software and an enhanced component identification library.
Features

stand-alone or with a PC
automatic component type identification
automatic pinout identification
special feature identification such as protection diodes and resistor shunts
bipolar transistors: gain and leakage current measurements, silicon and germanium detection
gate threshold measurement for Enhancement Mode MOSFETs
semiconductor forward voltage measurement for diodes, LEDs and
transistor Base-Emitter junctions
automatic and manual power-off

Specifications

Specification Summary at 20°C (68°F) unless otherwise specified
peak test current into short circuit: -5.5 mA to 5.5 mA
peak test voltage across open circuit: -5.1 V to 5.1 V
transistor:
gain range (Hfe): 4 - 65 000
gain accuracy: ± 3% ± 5 Hfe
Vceo test voltage: 2.0 V - 3.0 V
Vbe accuracy: -2% -20 mV to +2% + 20 mV
VBE for Darlington (shunted): 0.95 V - 1.80 V (0.75 V - 1.80 V)
base-emitter shunt threshold: 50 k&Omega, - 70 k&Omega,
BJT collector test current: 2.45 mA - 2.55 mA
BJT acceptable leakage: 0.7 mA
MOSFET:
gate threshold range: 0.1 V - 5.0 V
threshold accuracy: -2% -20 mV to +2% +20 mV
drain test current: 2.45 mA - 255 mA
gate resistance: 8 k&Omega,
depletion drain test current: 4.5 mA
JFET drain-source test current: 0.5 mA - 5.5 mA
SCR/Triac:
gate test current: 4.5 mA
load test current: 5.0 mA
diode:
test current: 5.0 mA
voltage accuracy: -2% -20 mV to +2% +20 mV
Vf for LED identification: 1.50 V - 4.00 V
short circuit threshold: 10 &Omega,
battery:
type: MN21 / L1028 / GP23A 12 V alkaline
voltage range: 7.50 V - 12 V
warning threshold: 8.25 V
dimensions: 103 x 70 x 20 mm
Weight per product (nett): 0.098kg
operating temperature range: 10°C ... 40°C
