Katalog : | 5503-437 |
Dostupnost : | na objednávku |
(obvyklá max. doba dodání : 2 týdny) |
nastavit hlídacího psa = pošle mail jakmile bude položka naskladněna
cena eshop s DPH : | 4.057,- Kč |
cena na prodejně : | 4.190,- Kč |
sleva : | 3,17 % |
množstevní slevy eshop (Kč) |
||
počet | bez DPH | vč. DPH |
1 ks | 3.353,- | 4.057,- |

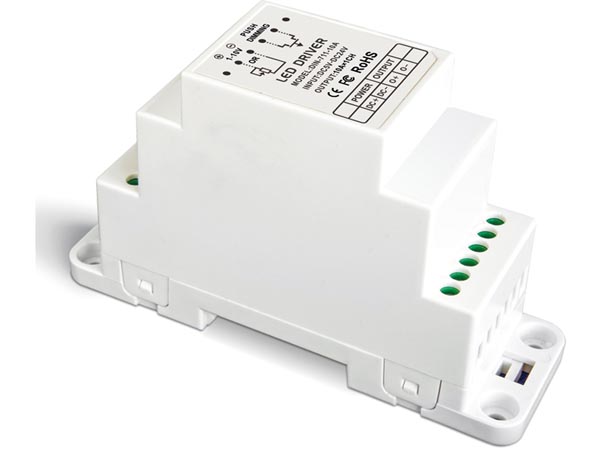

SINGLE CHANNEL LED DIMMER FOR DIN RAIL
Professional DIN rail dimmer for LED strips or dimmable constant voltage LED modules. This dimmer is controllable with 0-10 V, 1-10 V, 10 V PWM signal or push button. The maximum load is 10 A current. The PWM dimming curve is adapted to the human eye.
Features
ideal for use with LED strips. See our website.
compatible with :
0-10 V, 1-10 V and 10 V PWM input
push button
Specifications
power supply: 5 - 24 VDC
maximum load: 1 x 10 A
PWM frequency: ± 500 Hz
dimensions: 112 x 35 x 67 mm
weight: 120 g
working temperature: -30°C to + 55°C
