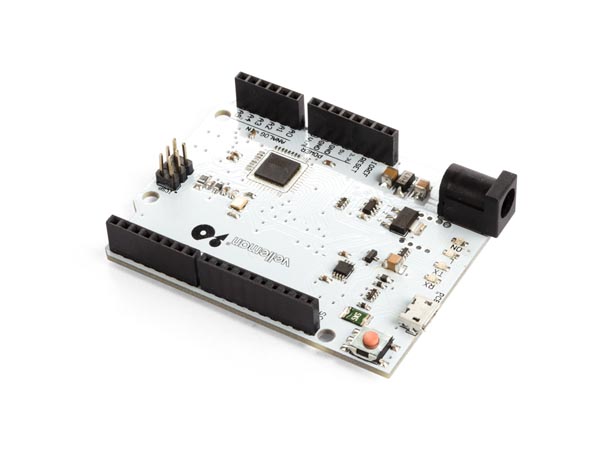

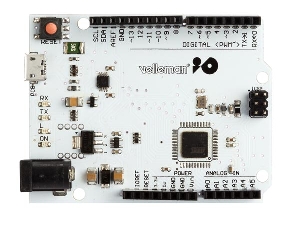

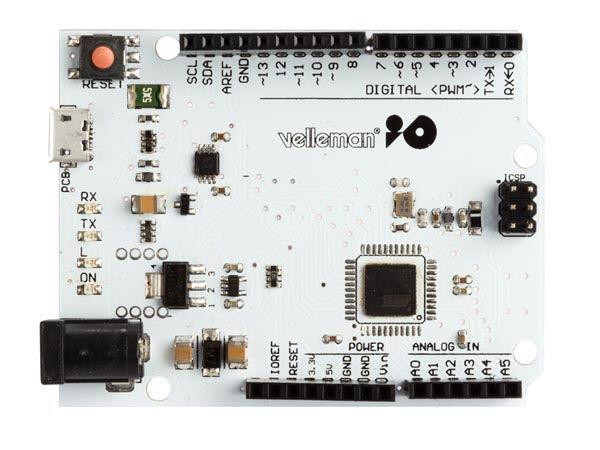

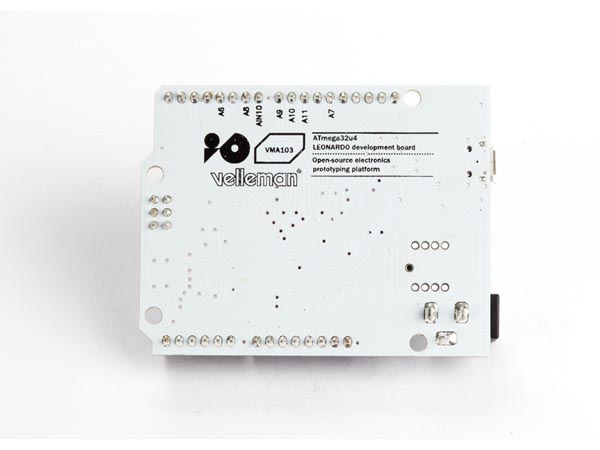

ATmega32u4 LEONARDO DEVELOPMENT BOARD
The VMA103 (Arduino Compatible leonardo) is a microcontroller board based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller, connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Features
100% compatible with Arduino LEONARDO
Specifications
microcontroller: ATmega32u4
operating voltage: 5 VDC
input voltage (recommended): 7-12 VDC
input voltage (limits): 6-20 VDC
digital I/O pins: 20
analogue input pins: 12
PWM channels: 7
DC current per I/O pin: 40 mA
DC current for 3.3 V pin: 50 mA
flash memory: 32 kB (ATmega32u4) of which 4 kB used by bootloader
SRAM: 2.5 kB (ATmega32u4)
EEPROM: 1 kB (ATmega32u4)
clock speed: 16 MHz
length: 68.6 mm
width: 53.3 mm
weight: 20 g
